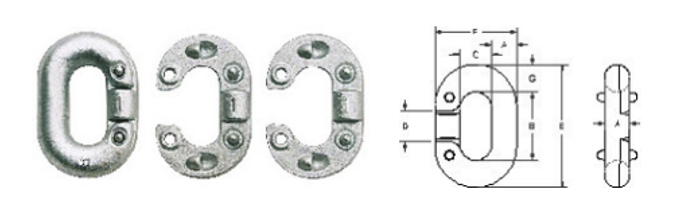

미싱링크
| Chain Size (in.) | Working Load Limit (lbs.) | Weight Per 100 (lbs.) | Dimensions(in.) | ||||||
| A | B | C | D | E | F | G | |||
| 3/16 | 800 | 2.5 | 0.25 | 0.69 | 0.34 | 0.34 | 1.19 | 0.78 | 0.28 |
| 1/4 | 1325 | 6.25 | 0.28 | 0.88 | 0.44 | 0.44 | 1.5 | 1 | 0.31 |
| 5/16 | 1950 | 12.5 | 0.34 | 0.94 | 0.47 | 0.47 | 1.69 | 1.16 | 0.38 |
| 3/8 | 2750 | 20 | 0.41 | 1.13 | 0.56 | 0.56 | 2.06 | 1.38 | 0.47 |
| 7/16 | 3625 | 27.5 | 0.47 | 1.28 | 0.59 | 0.59 | 2.34 | 1.53 | 0.53 |
| 1/2 | 4750 | 37.5 | 0.53 | 1.47 | 0.66 | 0.66 | 2.66 | 1.72 | 0.59 |
| 5/8 | 7250 | 72.5 | 0.66 | 1.81 | 0.78 | 0.81 | 3.31 | 2.09 | 0.75 |
| 3/4 | 10250 | 122.5 | 0.78 | 2.13 | 0.94 | 1.06 | 3.88 | 2.5 | 0.88 |
| 7/8 | 12000 | 175 | 0.91 | 2.5 | 1.13 | 1.13 | 4.5 | 2.94 | 1 |
| 1 | 15500 | 250 | 1.03 | 2.75 | 1.25 | 1.25 | 5 | 3.31 | 1.13 |
